90mm F2.8
DG DN | Contemporary


• I series - Premium Compact Primes for mirrorless users
• Remarkably compact and light
• Exceptional I series build quality, all-metal
• Compatible with full-frame cameras
• Ultra-fast and accurate AF performance
• Rich, smooth bokeh
• Exceptional optical performance
• Minimum focusing distance of 50cm
• Mount with dust- and splash-proof structure
• Magnetic Lens Cap and Metal Lens Hood
• Typical Photography: Portrait, Close-ups, Weddings & Events
Product Lines | Contemporary |
---|---|
Youtube Videos | |
Instagram Widget | |
Construction | 11 elements in 10 groups |
Lens Type | Telephoto |
Sensor Size | Full Frame |
Angle of view | 27.0° (Full-frame), 17.9° (APS-C) |
Number of diaphragm blades | 9 (Rounded diaphragm) |
Minimum aperture | F22 |
Minimum focusing distance | 50 cm |
Maximum magnification ratio | 1:5 |
Dimensions (diameter x length) | L-Mount ⌀ 64mm x 59.7mm |
--- | 295g |
Filter diameter | ⌀ 55mm |
Edition number | C021 |
Accessories | Lens Hood LH576-02, Magnetic Metal Lens Cap LCF55-01M, Front Cap LCFIII, Rear Cap LCRII |
EAN | L-Mount 085126261696 |

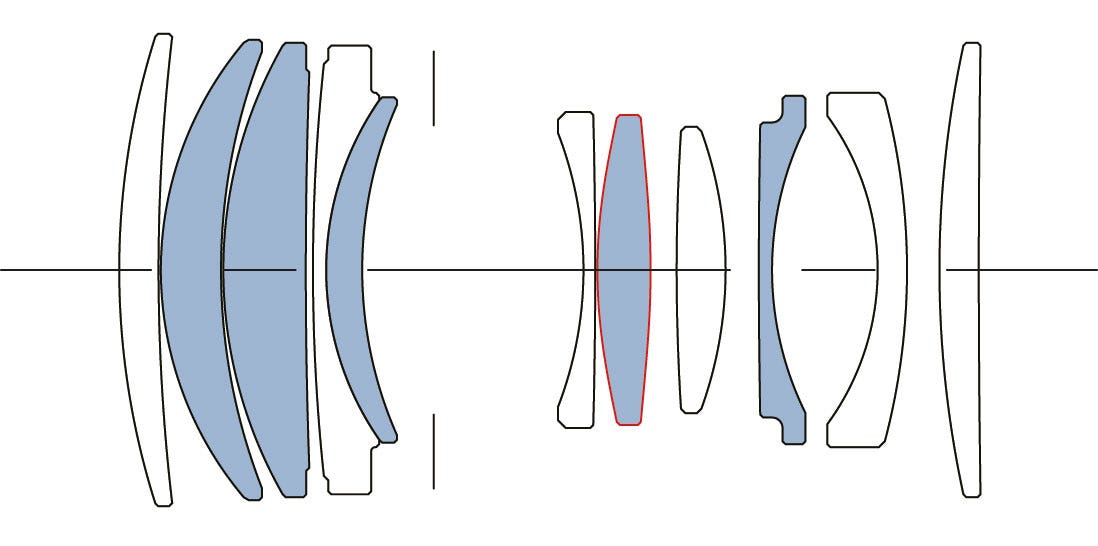

LENS CONSTRUCTION

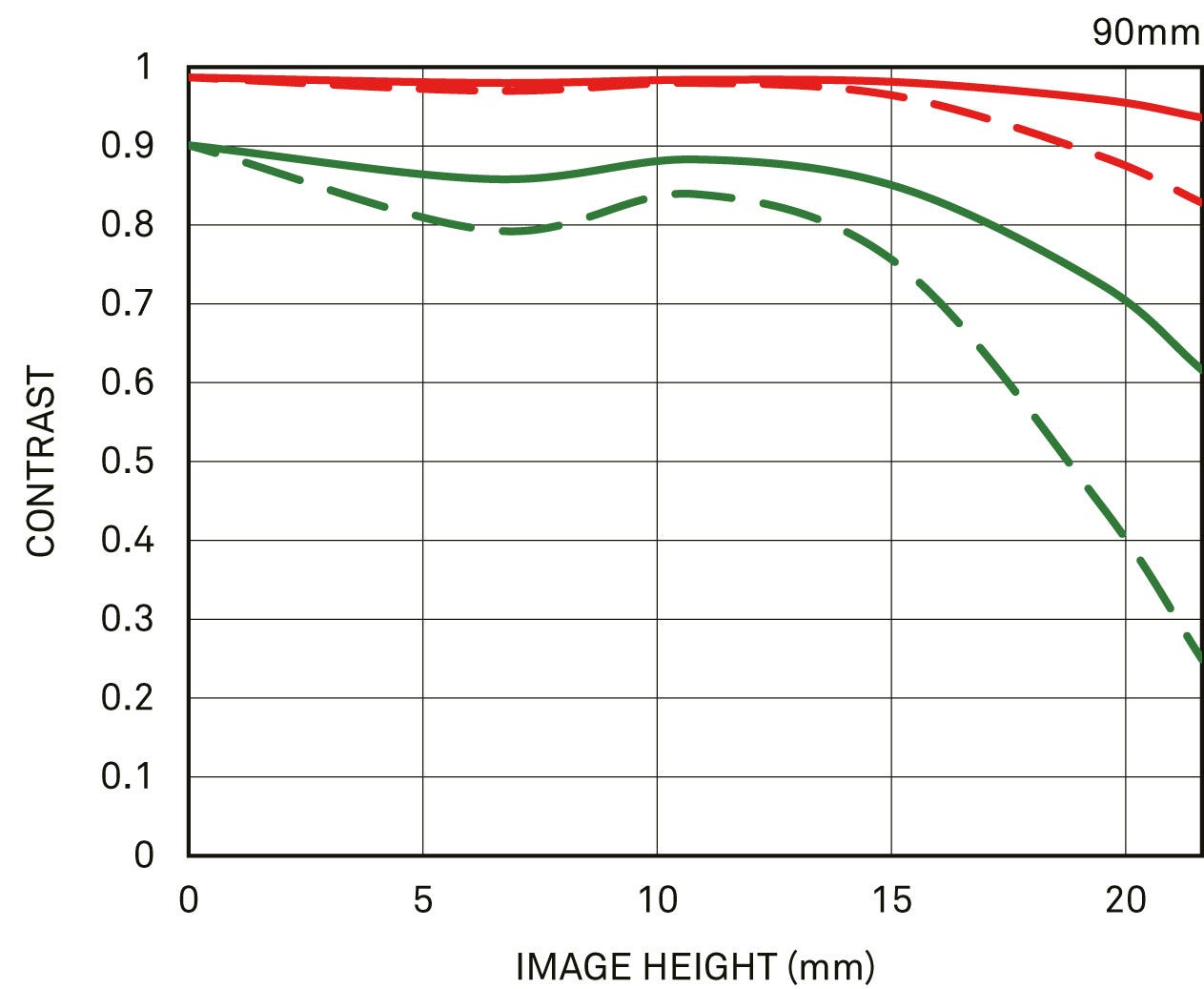

GEOMETRICAL MTF Chart

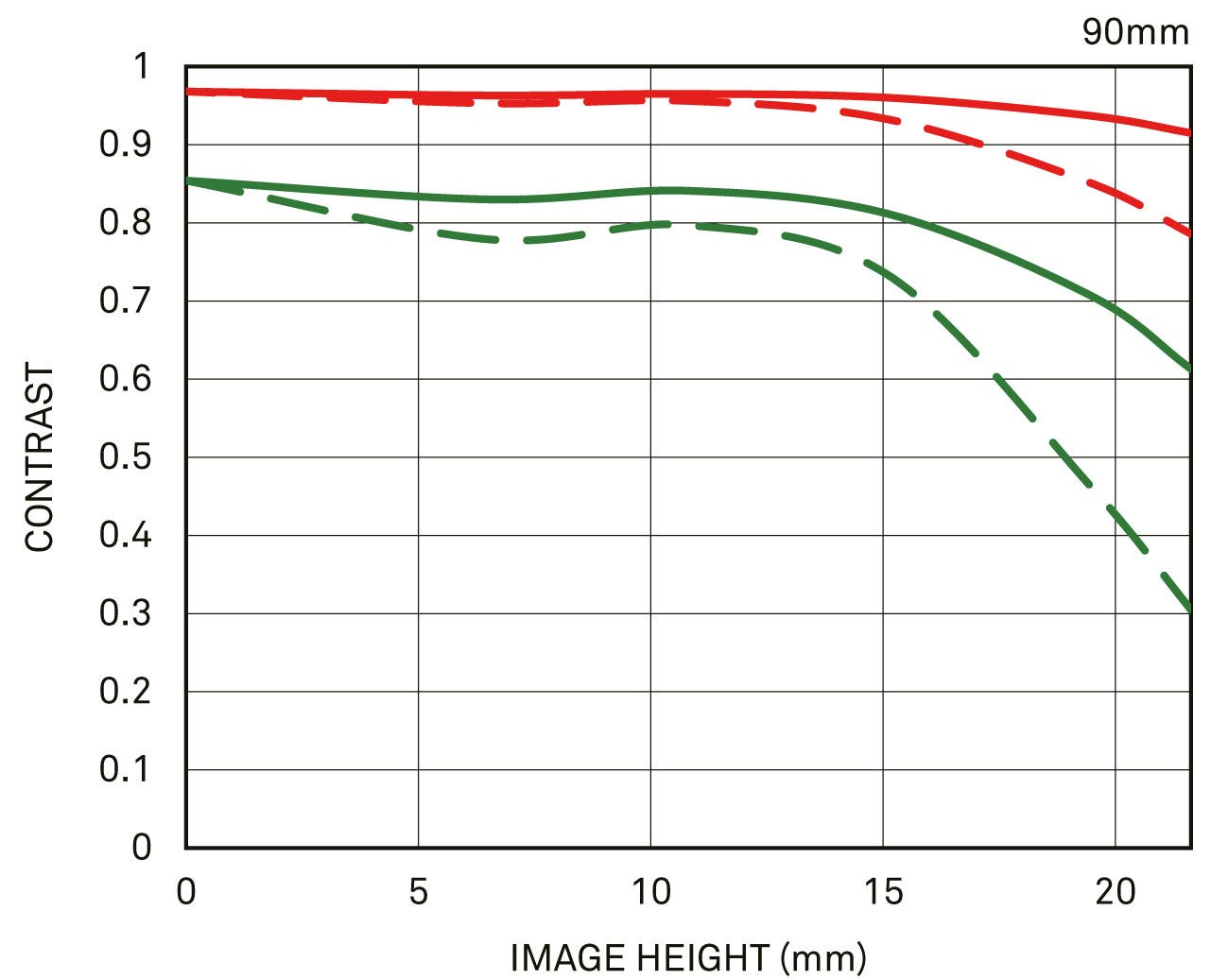

DIFFRACTION MTF CHART


Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Stepping Motor
The lens is capable of smooth, quiet and high-speed AF made possible by a stepping motor, as well as supports Face/Eye Detection AF and video AF.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).
Super Multi-Layer Coating
Super Multi-Layer Coating
Aperture ring
Aperture ring, designed to help users work intuitively
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Mount with Dust and Splash Resistant Structure
The lens mount incorporates rubber sealing to protect the mount from dust and water drops.
Lens construction: 11 elements in 10 groups, with 5 SLD and 1 aspherical lens elements
Compatible with high-speed autofocus
Support DMF and AF+MF
Round-type lens hood (LH576-02)
Magnetic metal lens cap (LCF55-01M)
Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)
Designed to minimize flare and ghosting
Every single lens undergoes SIGMA’s proprietary MTF measuring system
9-blade rounded diaphragm
High-precision, durable brass bayonet mount
